Pulse Transformer 610J647H01 – TPS Radar Pulse Transformer | NSN 5950-00-004-5547

Pulse Transformer 610J647H01. If you are looking for a reliable Pulse Transformer 610J647H01, this component supports dependable TPS radar system performance.

This unit is supplied in AR condition and includes our certificate of conformance ensuring authenticity, traceability, and compliance with aerospace standards.

Designed for radar system applications, this pulse transformer supports accurate signal transmission within TPS radar electronic systems during operational use.

Radar transformers play a critical role in maintaining stable signal processing and dependable radar equipment functionality.

Maintenance organizations often require certified radar components to ensure system reliability within aviation and defense radar operations.

This transformer supports radar electronics requiring precise impedance and current handling capabilities during mission operations.

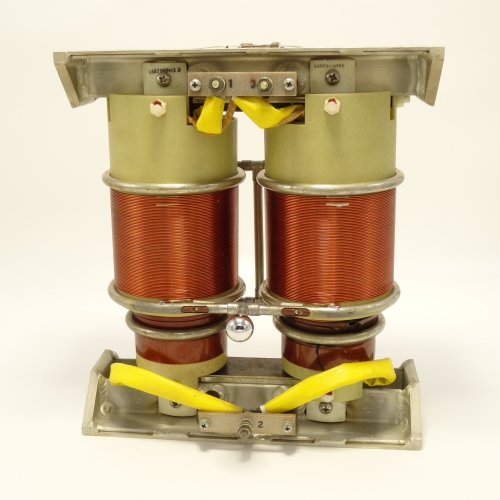

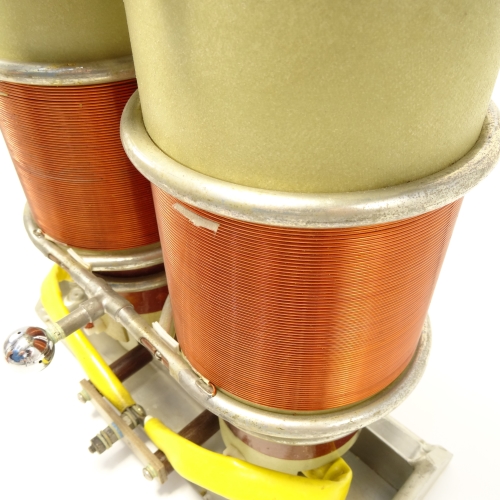

Pulse Transformer 610J647H01

Product Identification and Technical Details

The primary part number for this component is 610J647H01 supporting radar system integration requirements.

Alternative part numbers include 1366794, RX00826, RX826, and 5950-01-476-6155 supporting identification across aviation logistics supply networks.

This component carries National Stock Number 5950-00-004-5547 confirming classification within electrical transformer equipment used in radar systems.

Manufactured by Northrop Grumman Systems with CAGE code 97942, a recognized aerospace and defense electronics manufacturer.

Northrop Grumman components are trusted worldwide for radar system reliability and advanced aerospace electronic engineering standards.

These manufacturing standards ensure consistent performance and operational durability within demanding radar environments.

Pulse Transformer 610J647H01

Physical Characteristics and Construction

The transformer features an overall length of seven inches maximum supporting compact integration within radar electronic equipment assemblies.

Center distance between mounting facilities parallel to length measures twelve point four four zero inches ensuring secure installation alignment.

Center distance between mounting facilities parallel to width measures one inch ensuring precise structural mounting compatibility.

The body length measures five point two five zero inches maximum supporting compact internal transformer assembly construction.

Body width measures twelve point seven five zero inches providing sufficient internal space for winding and electrical insulation components.

Maximum body height measures fourteen point three one zero inches supporting structural integrity within radar transformer enclosures.

Pulse Transformer 610J647H01

Electrical Performance Specifications

Primary impedance rating measures thirteen-point nine ohms nominal supporting accurate electrical signal processing within radar system electronics.

Secondary impedance rating measures one thousand three hundred ninety ohms nominal ensuring balanced signal transformation between radar electronic circuits.

Primary winding operating current reaches eight hundred forty amperes AC maximum supporting high power radar system electrical loads.

Secondary winding operating current reaches eighty-four amperes AC maximum ensuring stable electrical output performance.

The transformer includes one primary winding and one secondary winding supporting reliable pulse transformer signal operation.

Terminal configuration includes four threaded stud terminals enabling secure electrical connections during radar system installation.

Mounting and Installation Features

The enclosure type for this transformer is open allowing integration within protected radar electronic equipment compartments.

The component includes four mounting facilities arranged within a single group for stable mechanical installation.

Mounting method uses threaded hole connections supporting secure fastening within radar system mounting structures.

Thread specification includes twenty threads per inch using UNC thread series designator.

Nominal thread size measures zero point two five zero inches supporting standardized aerospace mounting hardware compatibility.

These mounting features help ensure secure installation within radar electronic assemblies during maintenance operations.

Location and Export Information

This Pulse Transformer 610J647H01 is currently located in Romsey, United Kingdom and available through Aviation Spares & Repairs Limited.

Please note that an export licence is required prior to international shipment of this radar component.

Our team can assist customers with export compliance procedures and documentation when supplying radar equipment internationally.

Aviation Spares and Repairs Support

For further information regarding Pulse Transformer 610J647H01 please contact Aviation Spares & Repairs Limited for assistance.

Our team supports aviation and defense customers with sourcing, procurement, and supply of radar components and aerospace electronics.

We are also ready to assist with any additional aviation material requirements your organization may require.
